Douglas® VCP Max Windscreen

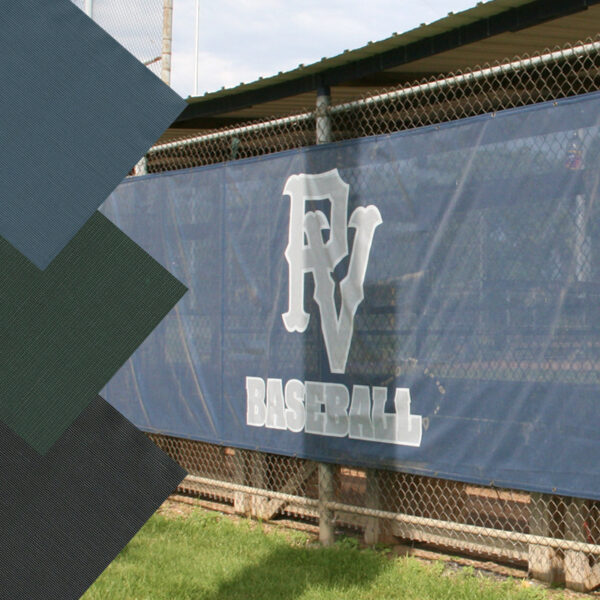

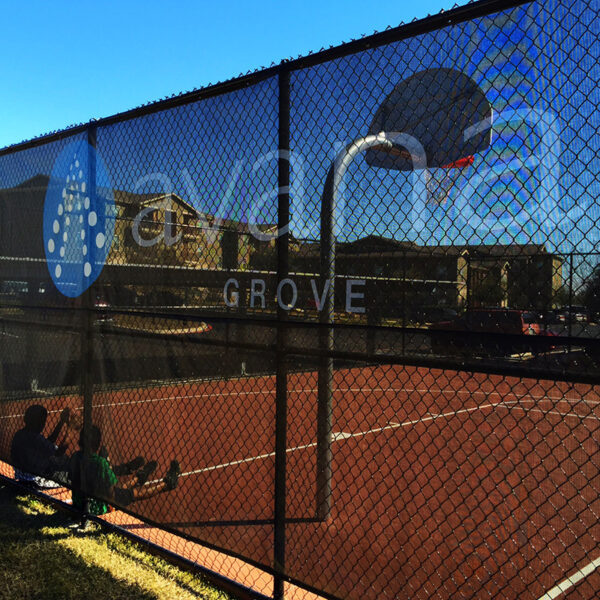

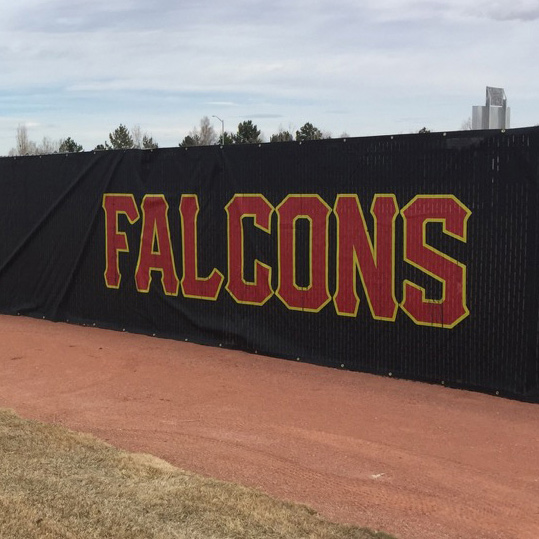

VCP Max™ goes one step further by offering maximum tensile strength and visual blockage. At 89% windbreak, VCP Max™ allows more airflow than closed mesh screens, but provides a better visual background than open mesh screens. This versatile and attractive windscreen fabric is durable and boasts great weather resistance. Custom digital printing and logos can be printed directly on the material. Douglas’s superior fabrication and attention to detail is proven with their unique extra-strong reinforced hems –the strongest in the industry.

Fabric: 50% vinyl, 50% polyester – 16 x 17 weave
Windbreak: 89%
Weight per sq yard: 9 oz
Tensile Strength: 395 x 401

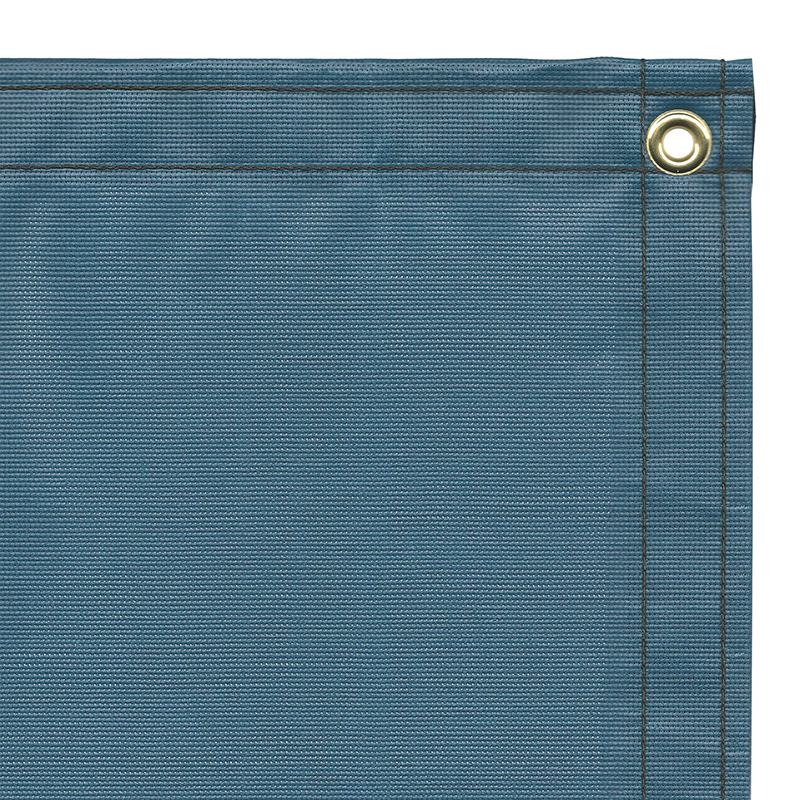

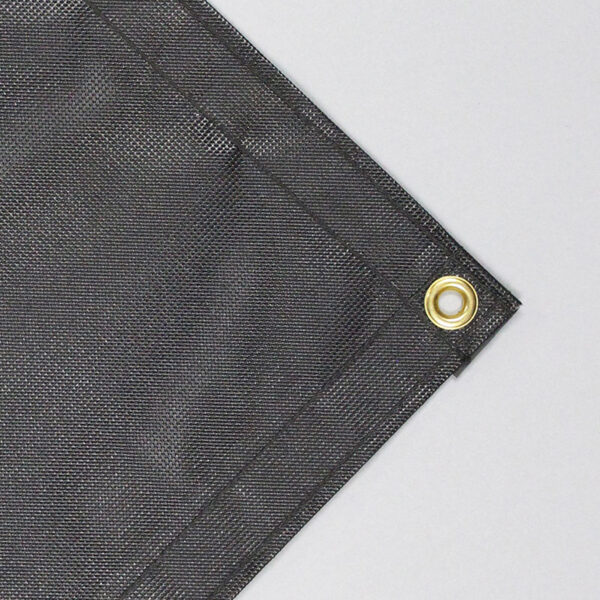

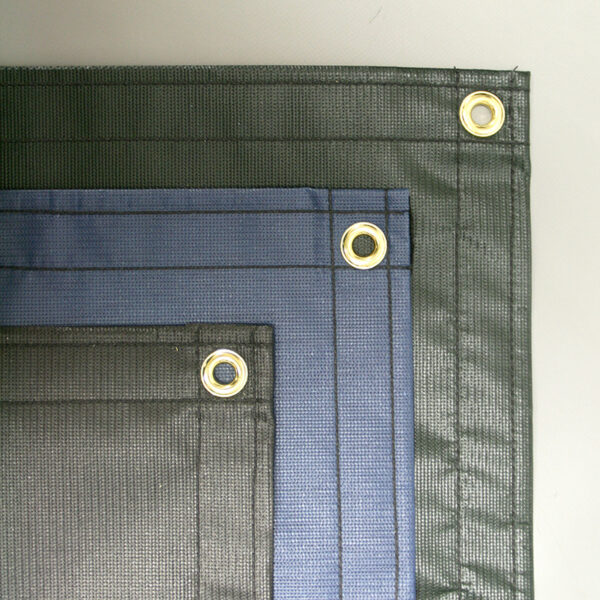

Standard Colors: Dark Green, Black or Open Tournament Blue
Warranty: 4-Year limited

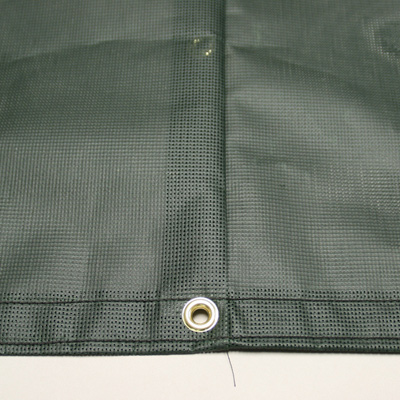

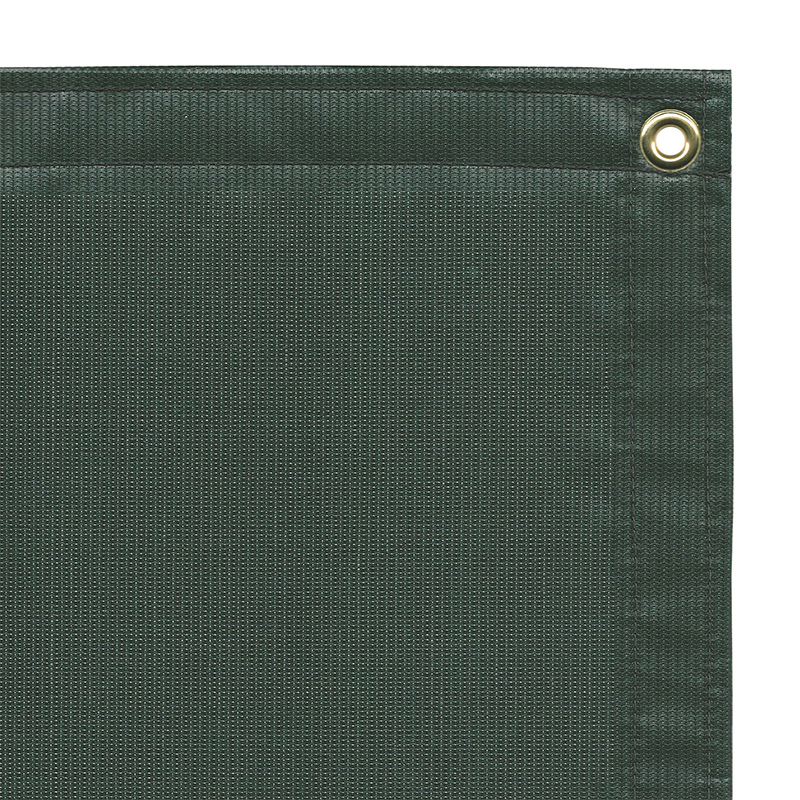

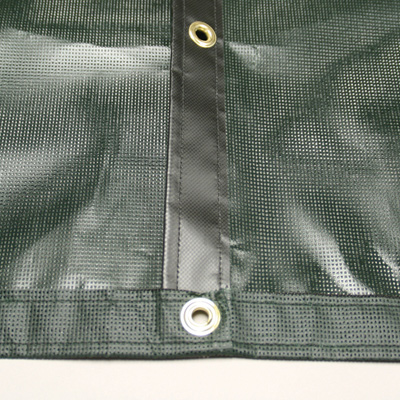

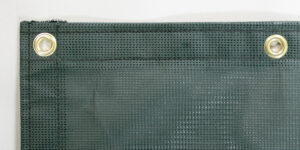

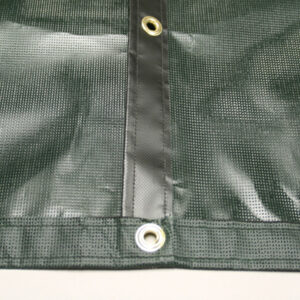

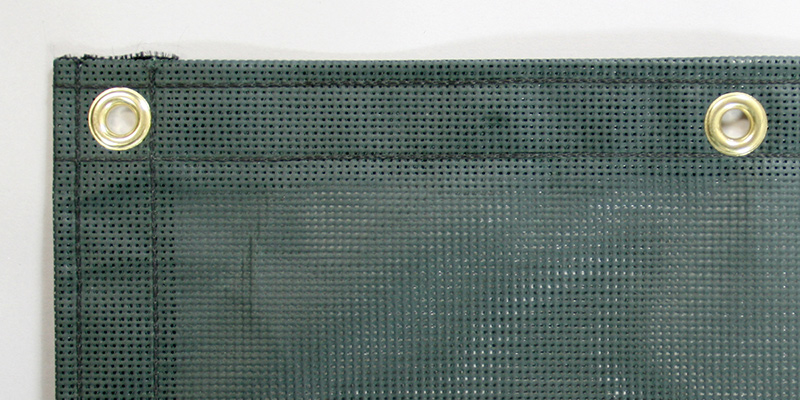

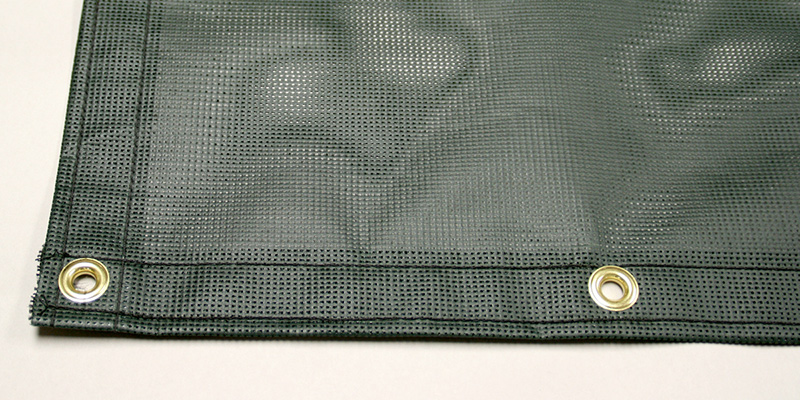

Windscreens are available in standard 6’ and 9’ heights and in custom heights by quotation. Any screen width is available; however, 60’ is the maximum recommended width per panel. VCP Max is hemmed with Douglas’s 3-ply extra-strong hems which are constructed with solid vinyl inserts that are double sewn to 1-1/2” wide. #2 brass grommets are spaced every 12” on sides and 18” on top and bottom. All 9’ screens include a Center Tab with grommets for anti-billowing installation. Center tabs are double sewn with 18 oz black vinyl. Optionally, 9’ screens may substitute a Center Reinforcement Tape (CRT) with grommets that can be laced to the fence. CRT’s are double stitched with a heavy polyester webbing.

Additional information


, ,

Installation InstructionsDouglas-Install-Windscreens.pdf
Bid SpecsDouglas-Spec-VCP-Max-Windscreen.docx
